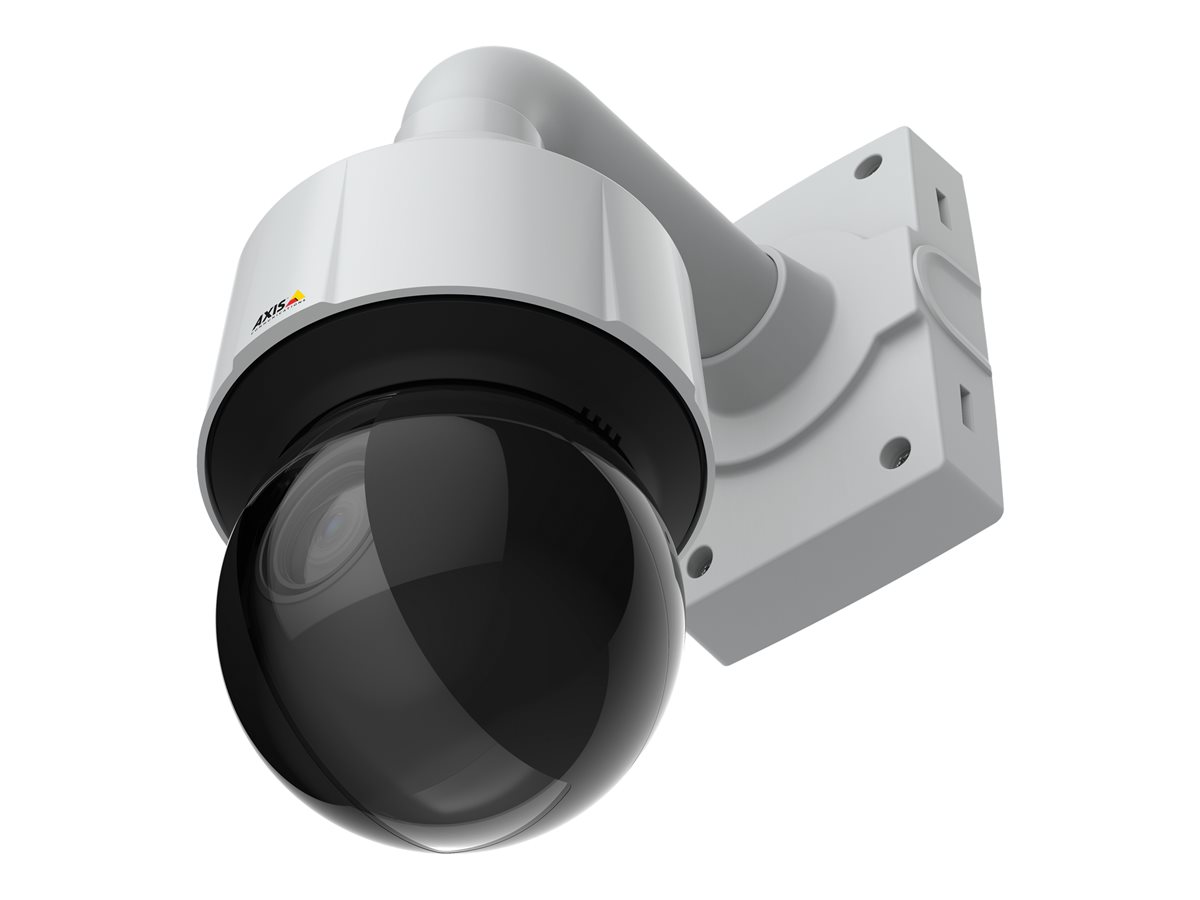

Axis Communications - AXIS Q6115-E PTZ Dome Network Camera 60Hz
Network surveillance camera - PTZ - outdoor - dustproof / waterproof - color (Day&Night) - 1920 x 1080 - 720p - MPEG-4, MJPEG, H.264 - High PoE
Axis Communications
0652-004
N/A
7331021043169
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | AXIS Q6115-E PTZ Dome Network Camera 60Hz - network surveillance camera |
| Device Type | Network surveillance camera - pan / tilt / zoom - outdoor - dustproof / waterproof |
| Dimensions (WxDxH) | 6.5 in x 6.5 in x 8.7 in |
| Weight | 5.95 lbs |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Optical Zoom | 30 x |
| Max Resolution | 1920 x 1080 |
| Frame Rate (max) | 60 frames per second |
| Motion Detection | Yes |
| Video Modes | 720p |
| Optical Sensor Type | CMOS - 1/3" |
| Minimum Illumination | 0.2 lux - color - F1.4 - 30 IRE ¦ 0.02 lux - B&W - F1.4 - 30 IRE |
| Focal Length | 4.4 mm - 132 mm |
| Focus Adjustment | Automatic |
| Lens Iris | F/1.4-4.6 |
| Panning Range (degree) | 360 |
| Tilting Range (degree) | -90 to +20 |
| Voltage | High PoE |
| Features | Backlight Compensation (BLC), sharpness control, white balance, color control, brightness control, e-mail alerts, Wide Dynamic Range (WDR), AXIS Video Hosting System (AVHS), infrared cut filter, defogger, 256 preset positions, temperature sensor, Electronic Image Stabilizer (EIS), 3D Privacy Mask Function, Video Motion Detection Technology, Live Streaming, password protection, auto tracking, shock detection, Variable Bitrate (VBR) |
| Manufacturer Warranty | 3-year warranty |
| Environmental Parameters (operating) | -58 °F - 122 °F; 10 - 100% relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Connectivity Technology | Wired |
| Width | 6.5 in |
| Depth | 6.5 in |
| Height | 8.7 in |
| Weight | 5.95 lbs |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | SD Memory Card, SDXC Memory Card, SDHC Memory Card |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |

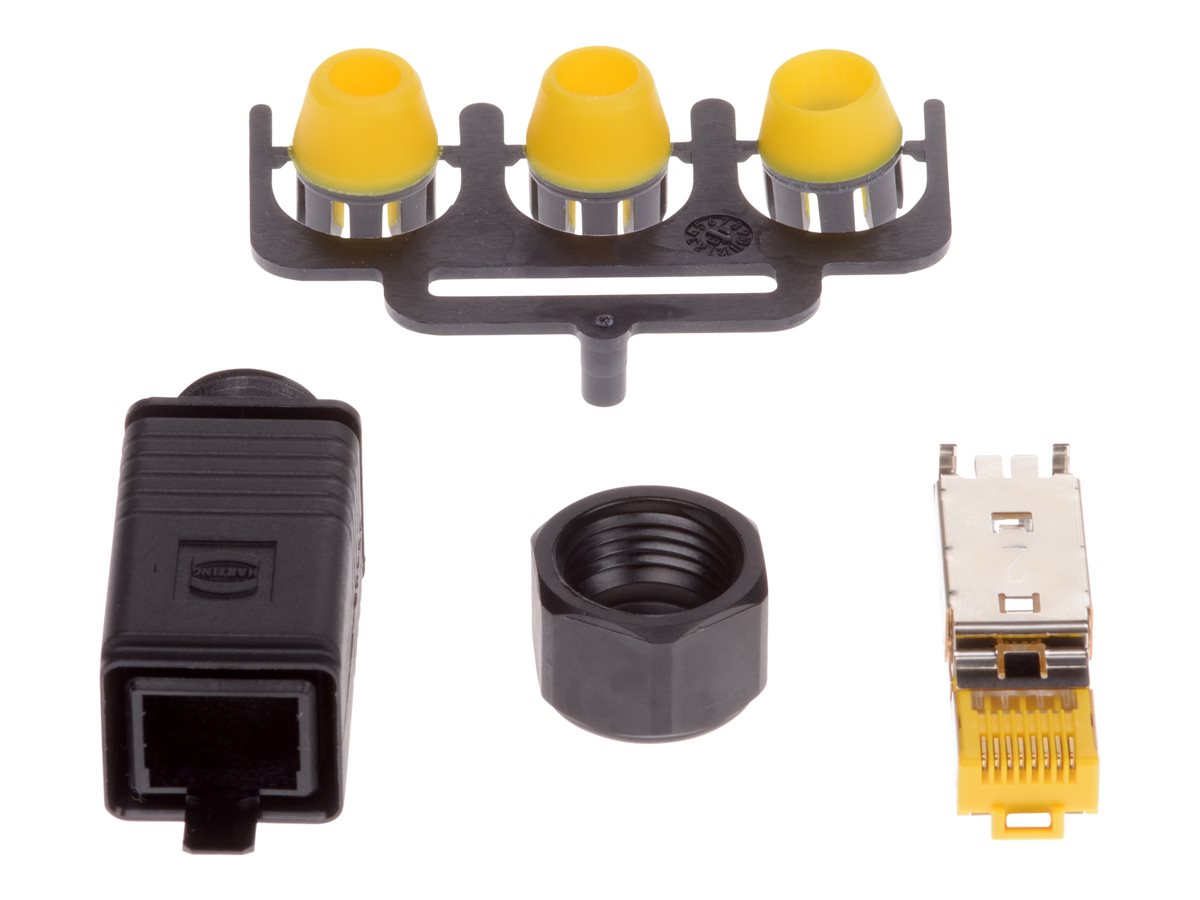

| Included Accessories | AXIS High PoE Midspan (1 port), IP66-rated RJ45 connector kit |
| Compliant Standards | UL, VCCI, C-Tick, cUL, EN 61000-3-2, GS, EN 61000-3-3, EN55024, IEC 60529 IP66, CB, EN 61000-6-1, FCC Part 15 B, ICES-003 Class A, FCC, NEMA Type 4X, EN 61000-6-2, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, IEC 60068-2-27, IEC 60068-2-6, UL-AR, IP66, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, ISO 4892-2, IEC 62262 IK08, EN 50121-4, IEC 62236-4, VCCI Class A, KN24, KCC KN22, IEC 60950-22, AS/NZS CISPR22:2004 Class A, EN 60950-22, UL 60950-22, EN 55022 Class A |
| Power | |
| Power Requirements | High PoE |
| Power Device | Power injector - external AC 120/230 V 51 Watt |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| Environmental Parameters | |
| Min Operating Temperature | -58 °F |
| Max Operating Temperature | 122 °F |
| Relative Humidity (operating) | 10 - 100% |
| Camera | |
| Type | Color - Day&Night - pan / tilt / zoom - outdoor - dustproof / waterproof |
| Digital Video Format | MPEG-4, MJPEG, H.264 |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Video Modes | 720p |
| Digital Zoom | 12 |
| Exposure Range | 1/30000 sec |
| Minimum Illumination | 0.2 lux - color - F1.4 - 30 IRE ¦ 0.02 lux - B&W - F1.4 - 30 IRE |
| Digital Video Capture Resolution | 1920 x 1080, 240 x 135 |
| Frame Rate (max) | 60 frames per second |
| RAM | 1 GB |
| Flash Memory | 512 MB |
| Features | Backlight Compensation (BLC), sharpness control, white balance, color control, brightness control, e-mail alerts, Wide Dynamic Range (WDR), AXIS Video Hosting System (AVHS), infrared cut filter, defogger, 256 preset positions, temperature sensor, Electronic Image Stabilizer (EIS), 3D Privacy Mask Function, Video Motion Detection Technology, Live Streaming, password protection, auto tracking, shock detection, Variable Bitrate (VBR) |
| Lens Construction | |
| Optical Zoom | 30 x |
| Focal Length | 4.4 mm - 132 mm |
| Lens Iris | F/1.4-4.6 |
| Focus Adjustment | Automatic |
| Horizontal Field of View (degree) | 2.3 - 63.4 |
| Vertical Field of View (degree) | 1.3 - 37.3 |
| Image Sensor | |
| Type | CMOS 1/3" |
| Interfaces | |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SFTP |
| Panning | |
| Range (degree) | 360 |
| Speed (degree/sec) | Up to 700 |
| Tilting | |
| Range (degree) | -90 to +20 |
| Speed (degree/sec) | Up to 500 |
