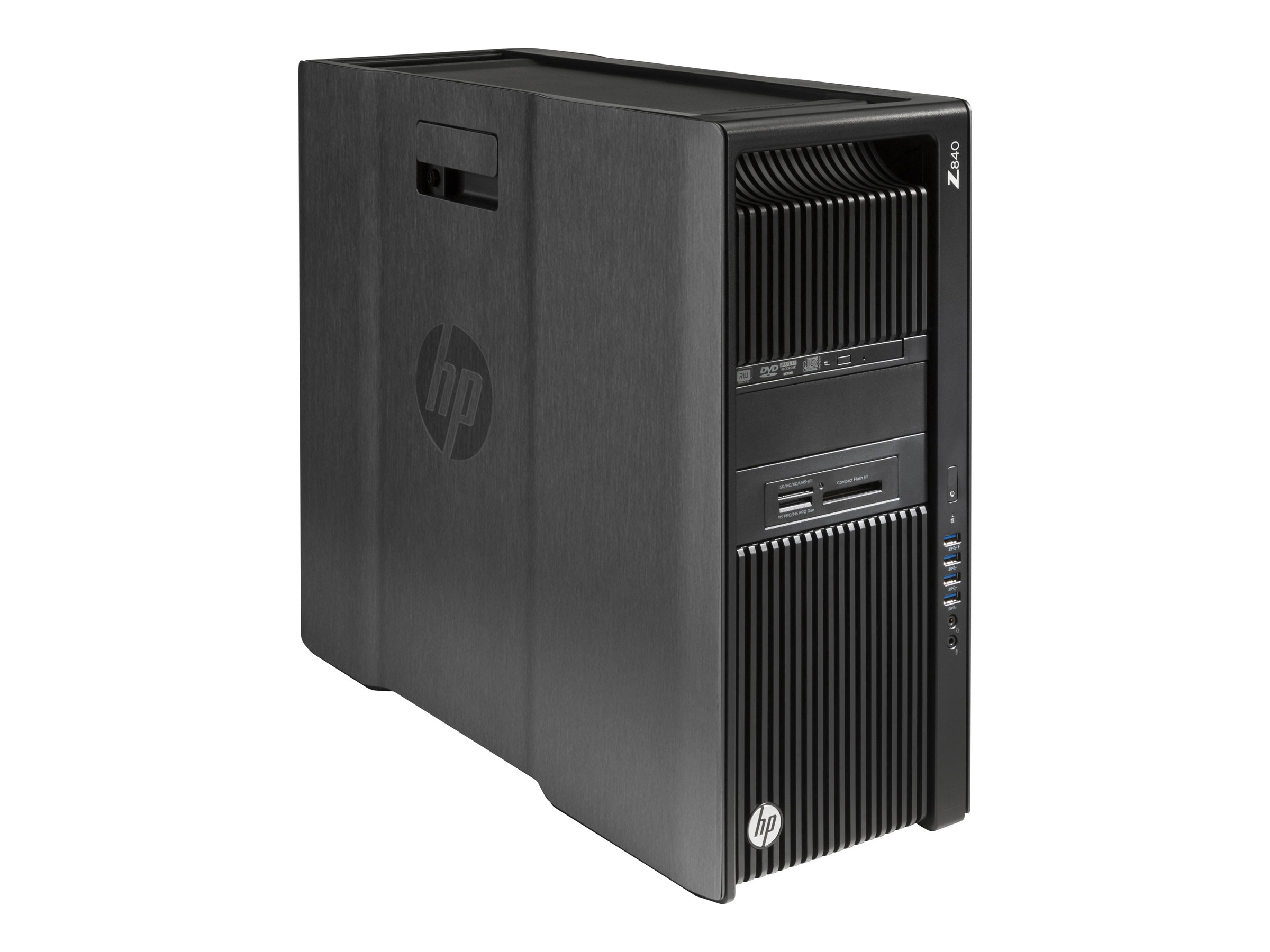

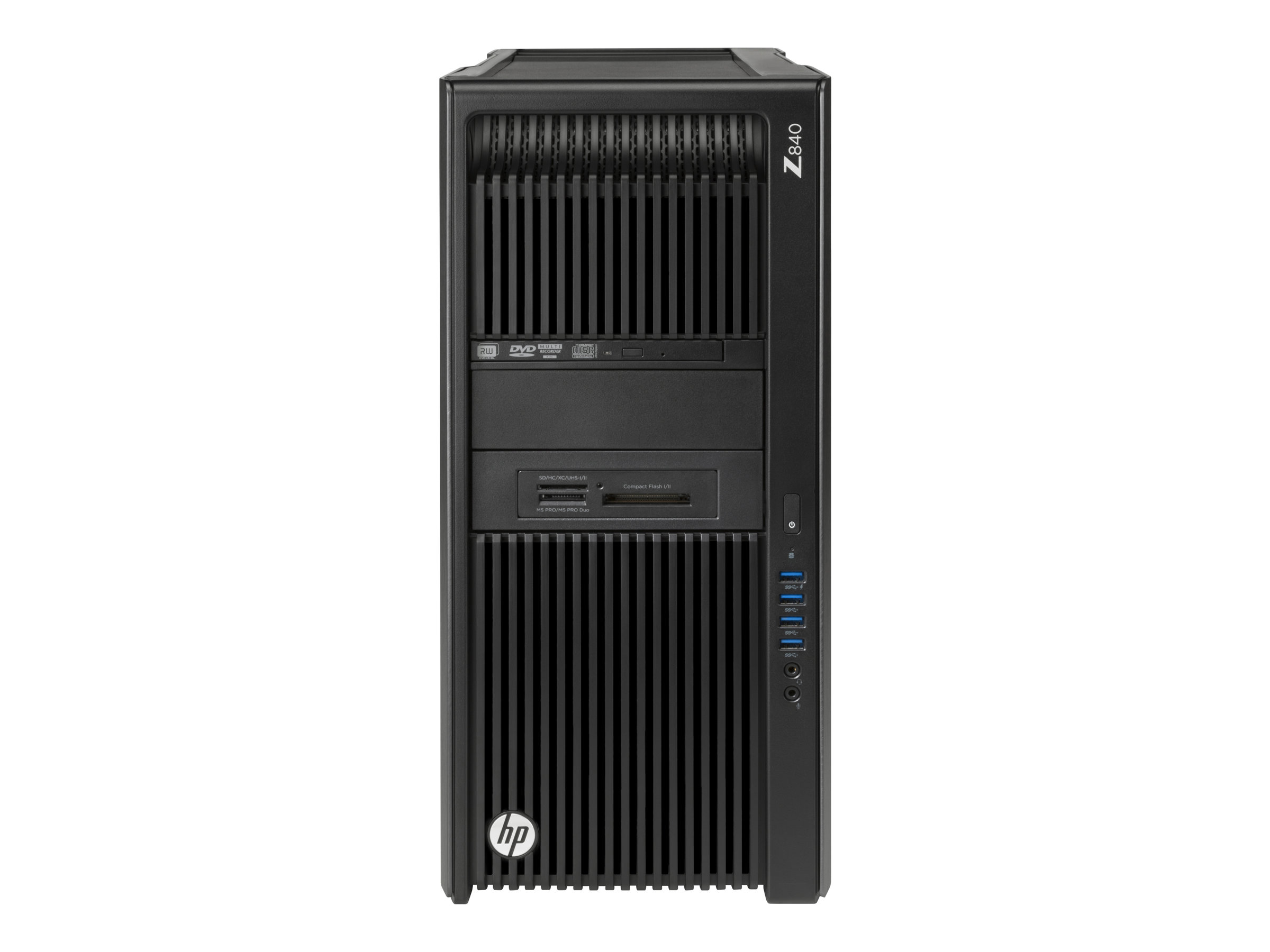

HP Inc. - HP Workstation Z840
Tower - 5U - 1 x Xeon E5-2643V3 / 3.4 GHz - RAM 16 GB - SSD 256 GB - MLC - DVD SuperMulti - 2 x Quadro K2200 - Gigabit Ethernet - Win 7 Pro 64-bit (includes Win 10 Pro 64-bit License) - monitor: none - keyboard: US - black, hematite
HP Inc.
1RN84US#ABA
N/A
0190781799405
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | HP Workstation Z840 - tower - Xeon E5-2643V3 3.4 GHz - 16 GB - SSD 256 GB - US |
| Type | Workstation - tower |
| Height (Rack Units) | 5U |
| Localization | Language: English / region: United States |
| Processor | 1 x Intel Xeon E5-2643V3 / 3.4 GHz (, up to 3.7 GHz, (6-core) |
| Processor Socket | LGA2011-v3 Socket |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2 |
| Cache Memory | 20 MB |
| Cache Per Processor | 20 MB |
| RAM | 16 GB (installed) / 256 GB (max) - DDR4 SDRAM - PC4-17000 |
| Storage Controller | SAS-2 (SAS 6Gb/s); RAID (SATA 6Gb/s) |
| Hard Drive | SSD 256 GB - SATA 6Gb/s - multi-level cell (MLC) |
| Optical Storage | DVD SuperMulti |
| Graphics Controller | PCIe 2.0 x16 - 2 x NVIDIA Quadro K2200 |
| Video Memory | 4 GB GDDR5 SDRAM |
| Networking | 1GbE |
| Keyboard | US |
| Power | AC 120/230 V (50/60 Hz) |
| OS Provided | Microsoft Windows 7 Professional 64-bit Edition (downgrade from Windows 10 Pro 64-bit) + Windows 10 Pro 64-bit License |
| Color | Black, hematite |
| Dimensions (WxDxH) | 8 in x 20.7 in x 17.5 in |
| Weight | 46.52 lbs |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site |
| General | |
| Type | Workstation |
| Product Form Factor | Tower - 5U |
| Embedded Security | Trusted Platform Module (TPM 1.2) Security Chip |
| Color | Black, hematite |
| Localization | Language: English / region: United States |
| Expansion / Connectivity | |
| Bays | 1 (total) / 0 (free) x external 5.25" Slim Line ¦ 2 (total) / 2 (free) x external 5.25" ¦ 4 (total) / 3 (free) x internal 3.5" |
| Slots | 2 (total) / 1 (free) x CPU ¦ 16 DIMM 288-pin ¦ 1 (total) / 1 (free) x PCIe 3.0 x4 ¦ 2 (total) / 0 (free) x PCIe 3.0 x16 ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 (2 processors must be installed) ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 (2 processors must be installed) ¦ 1 (total) / 1 (free) x PCIe 2.0 x1 ¦ 1 (total) / 1 (free) x PCIe 2.0 x4 (PCIe 3.0 x8 mode with 2 processors) |
| Interfaces | 8 x USB 3.0 (4 front, 4 rear) ¦ 2 x USB 2.0 ¦ 1 x PS/2 mouse ¦ 1 x PS/2 keyboard ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in ¦ 1 x microphone (1 in front) ¦ 1 x audio line-out ¦ 1 x headphones/microphone (1 in front) ¦ 1 x serial ¦ 2 x DVI-I (dual link) ¦ 4 x DisplayPort |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Included Accessories | HP Single Processor Air Cooling Kit |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | RoHS, WEEE, ACPI 4.0 |
| RAM | |
| Installed Size | 16 GB / 256 GB (max) |
| Technology | DDR4 SDRAM |
| Effective Memory Speed | 2133 MHz |
| Rated Memory Speed | 2133 MHz |
| Memory Specification Compliance | PC4-17000 |
| Form Factor | DIMM 288-pin |
| Slots | 16 (total) |
| Features | Registered |
| RAM Supported | 256 GB registered - ECC ¦ 2 TB Load-Reduced - ECC |
| Networking | |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | Intel I218-LM, I210-AT |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Wake on LAN (WoL), PXE support, auto-uplink (auto MDI/MDI-X) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1as, IEEE 802.3ap, IEEE 802.3az |
| Power | |
| Device Type | Power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 1450 Watt |
| Power Factor Correction | Yes (active) |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 85% (non-condensing) |
| Storage Controller | |
| Type | 1 x SAS-2 |
| Controller Interface Type | SAS 6Gb/s |
| Channel Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 10 |
| Cache Memory | |
| Installed Size | 20 MB |
| Cache Per Processor | 20 MB |
| Optical Storage | |
| Type | DVD±RW (±R DL) / DVD-RAM DVD SuperMulti - SATA |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Interface Type | PCIe 2.0 x16 |
| Graphics Processor | 2 x NVIDIA Quadro K2200 |
| Video Memory | 4 GB GDDR5 SDRAM |
| Video Interfaces | DVI, DisplayPort |
| Max Monitors Supported | 4 |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | Microsoft Windows 7 Professional 64-bit Edition (available through downgrade rights from Windows 10 Pro 64-bit) + Windows 10 Pro 64-bit License - English |
| Storage Controller (2nd) | |
| Type | 1 x RAID |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 6 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
| Hard Drive | |
| Type | SSD |
| Capacity | 1 x 256 GB |
| Interface Type | SATA 6Gb/s |
| Features | Multi-level cell (MLC) |
| Input Device | |
| Type | Mouse, keyboard |
| Dimensions & Weight | |
| Width | 8 in |
| Depth | 20.7 in |
| Height | 17.5 in |
| Weight | 46.52 lbs |
| Keyboard | |
| Interface | USB |
| Localization & Layout | US |
| Mouse | |
| Technology | Optical |
| Interface | USB |
| Processor / Chipset | |
| CPU | Intel Xeon E5-2643V3 |
| Clock Speed | 3.4 GHz |
| Max Turbo Speed | 3.7 GHz |
| Number of Cores | 6-core |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2 |
| CPU Socket | LGA2011-v3 Socket |
| Chipset Type | Intel C612 |
