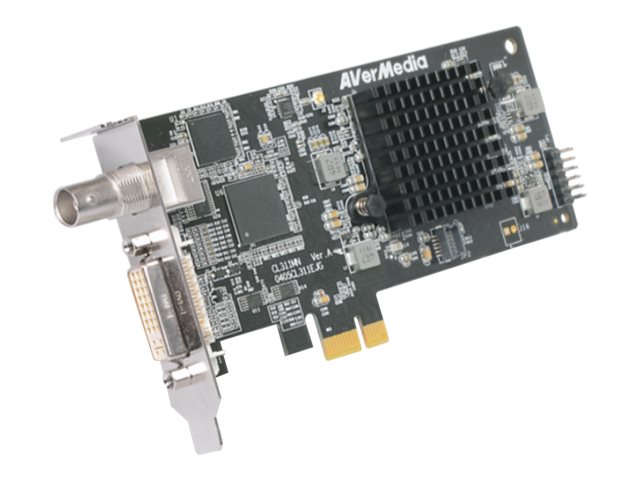

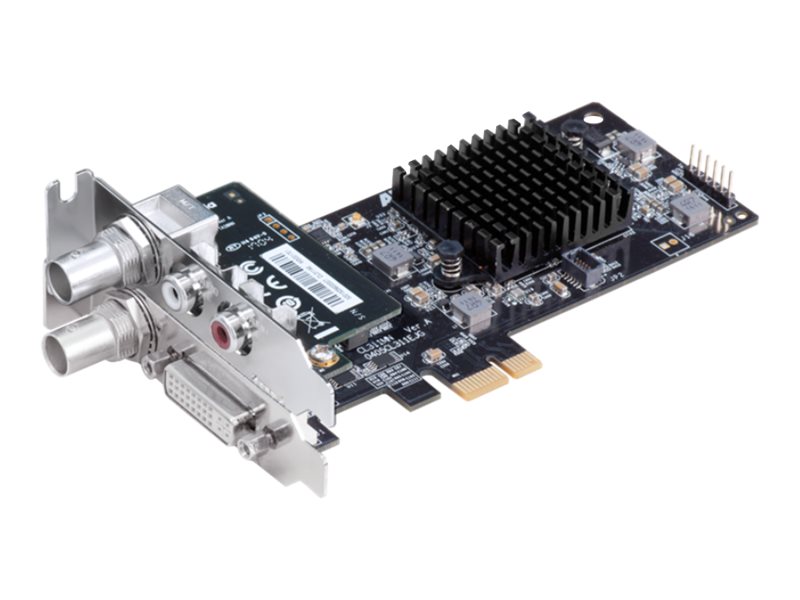

AVerMedia - AVerMedia CL311-MN

Video capture adapter - PCIe 2.0 low profile

Manufacturer:

AVerMedia

Part #:

CL311-MN

UNSPSC Code:

N/A

UPC:

0795522965509

Replacement Product:

N/A

Product Condition:

New

Price: $528.01

Total Available: 0

Qty:

Add to Cart

Add to Favorites

Product Description

Additional Details

What's Included

Main Specifications
Product Description	AVerMedia CL311-MN - video capture adapter - PCIe 2.0 low profile
Device Type	Video capture adapter - low profile
Interface Type	PCIe 2.0
Dimensions (WxDxH)	5.4 in x 2.5 in
Video Input	VGA input, DVI-Analog/Digital input, HDMI input, 3G-SDI input
Video Modes	1080/24p, 1080/60i, 480/60p, 720/60p, 1080/50i, 720/50p, 1080/60p, 480/60i
Video Compression Format	YUV 4:2:2, YUV 4:4:4
Digital Video Capture Speed	60 frames per second
Digital Video Capture Resolution	1280 x 720, 720 x 480, 640 x 480, 1280 x 960, 1152 x 864, 1600 x 1200, 1024 x 768, 720 x 576, 1280 x 1024, 800 x 600, 1280 x 768, 1920 x 1080, 1280 x 800, 1920 x 1200, 1440 x 900, 1360 x 768, 1680 x 1050, 1600 x 900, 720 x 400, 1400 x 1050
Audio Input Support	Standard
OS Required	Linux, Microsoft Windows 7 (32/64 bits), Windows 8.1 (32/64 bits), Windows 10 (32/64 bits)
General
Device Type	Video capture adapter - low profile
Interface Type	PCIe 2.0
Depth	5.4 in
Height	2.5 in
Expansion / Connectivity
Interfaces	1 x audio / video - 3G-SDI input - BNC ¦ 1 x display / video - DVI-Analog/Digital input
Compatible Slots	1 x PCI Express 2.0 x1 - low-profile
Miscellaneous
Compliant Standards	FCC
Power
Power Consumption Operational	5 Watt
Software / System Requirements
OS Required	Linux, Microsoft Windows 7 (32/64 bits), Windows 8.1 (32/64 bits), Windows 10 (32/64 bits)
Environmental Parameters
Min Operating Temperature	32 °F
Max Operating Temperature	122 °F
Humidity Range Operating	5 - 80%
Video
Interface Type	VGA input, DVI-Analog/Digital input, HDMI input, 3G-SDI input
Video Modes	1080/24p, 1080/60i, 480/60p, 720/60p, 1080/50i, 720/50p, 1080/60p, 480/60i
Video Compression Format	YUV 4:2:2, YUV 4:4:4
Digital Video Capture Speed	60 frames per second
Digital Video Capture Resolution	1280 x 720, 720 x 480, 640 x 480, 1280 x 960, 1152 x 864, 1600 x 1200, 1024 x 768, 720 x 576, 1280 x 1024, 800 x 600, 1280 x 768, 1920 x 1080, 1280 x 800, 1920 x 1200, 1440 x 900, 1360 x 768, 1680 x 1050, 1600 x 900, 720 x 400, 1400 x 1050
Audio Input Support	Standard
