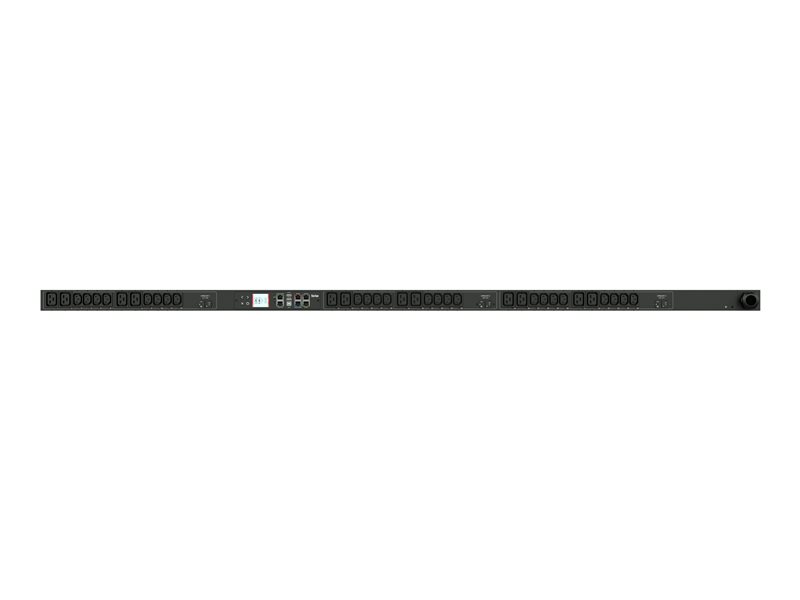

Raritan - Raritan PX3-5726
Power distribution unit (rack-mountable) - AC 208 V - 12600 VA - 3-phase delta - Ethernet 10/100/1000 - input: Hubbell CS8365C - output connectors: 36 (24 x IEC 60320 C13, 12 x IEC 60320 C19) - 0U - 10 ft cord - red
Raritan
PX3-5726-K1
N/A
N/A
N/A
New
Product Description
Additional Details
What's Included
Main Specifications | |
---|---|
Product Description | Raritan PX3-5726 - power distribution unit - 12600 VA |
Device Type | Power distribution unit - rack-mountable |
Cord Length | 10 ft |
Rack Size | 0U |
Input Wiring | 3-phase delta |
Input Voltage | AC 208 V |
Output Voltage | AC 208 V |
Power Capacity | 12600 VA |
Input Connectors | 1 x Hubbell CS8365C |
Output connectors | 24 x power IEC 60320 C13 12 A ¦ 12 x power IEC 60320 C19 16 A |
Networking | Ethernet 10/100/1000 |
Remote Management Protocol | Telnet, SNMP 3, HTTP, SSH, CLI, JSON-RPC, Modbus |
Color | Red |
Image Color Disclaimer | The displayed product image may be a different color |
Dimensions (WxDxH) | 2 in x 2.6 in x 70.1 in |
Manufacturer Warranty | 2-year warranty |
General | |
Device Type | Power distribution unit - rack-mountable |
Height (Rack Units) | 0U |
Cord Length | 10 ft |
Color | Red |
Image Color Disclaimer | The displayed product image may be a different color |
Expansion / Connectivity | |
Interfaces | 2 x Gigabit LAN - RJ-45 ¦ 1 x console/modem ¦ 1 x sensor ¦ 1 x expansion ¦ 2 x USB - 4 pin USB Type A ¦ 1 x USB - 4 pin USB Type B |
Manufacturer Warranty | |
Service & Support | Limited warranty - 2 years |
Miscellaneous | |
Cables Included | Power cable 10 ft |
Features | Vertical orientation, LCD display, current meter, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, remote outlet switching, metering per input line, metering per branch circuit breaker, metering per output receptacle, ISO/IEC 62053-21 1% metering accuracy, 3 x LEGBXA66-20 overload protection, removable controller, voltage meter, environmental sensor ready, 16MB SPI Flash, 64MB DDR2 RAM |
Compliant Standards | UL, cULus |
Networking | |
Remote Management Interface | Ethernet 10/100/1000 |
Remote Management Protocol | Telnet, SNMP 3, HTTP, SSH, CLI, JSON-RPC, Modbus |
Environmental Parameters | |
Max Operating Temperature | 140 °F |
Humidity Range Operating | 85% |
Power Device | |
Input Voltage | AC 208 V |
Input Wiring | 3-phase delta |
Input Connectors | 1 x Hubbell CS8365C |
Power Output Connectors Details | 24 x power IEC 60320 C13 12 A ¦ 12 x power IEC 60320 C19 16 A |
Output Voltage | AC 208 V |
Max Electric Current | 50 A |
Power Capacity | 12600 VA |
Circuit Protection | Circuit breaker |
Dimensions & Weight | |
Width | 2 in |
Depth | 2.6 in |
Height | 70.1 in |
