Tripp Lite - Eaton Tripp Lite Series UPS Smart 1000VA 1000W 120V LCD USB DB9 Extended Run WEBCARDLXE 2URM

UPS (rack-mountable) - 9.2 A - AC 120 V - 1000 Watt - 1000 VA - 1-phase - RS-232, USB - output connectors: 8 - 2U - 19"

Tripp Lite
SMART1000RMX2UN
N/A
0037332256447
N/A
New

Price: $1,122.73

Total Available: 0

Product Description

Additional Details

What's Included

Specifications

Main Specifications
Product Description Eaton Tripp Lite Series UPS Smart 1000VA 1000W 120V LCD USB DB9 Extended Run WEBCARDLXE 2URM - UPS - 1000 Watt - 1000 VA
Device Type UPS - rack-mountable
Rack Size 19" - 2U
Weight 44.53 lbs
Input Wiring 1-phase
Input Voltage AC 120 V
Output Voltage AC 110/115/120 V ± 0.5%
Power Capacity 1000 Watt / 1000 VA
Input Connectors 1 x power NEMA 5-15P
Output connectors 8 x power NEMA 5-15R
Battery Expandable
Run Time (Up To) 6.3 min at full load
Networking RS-232, USB
Included Accessories Network interface card (WEBCARDLXE)
Dimensions (WxDxH) 17.3 in x 17.6 in x 3.4 in
Manufacturer Warranty 2-year warranty
General
Device Type UPS - rack-mountable
Height (Rack Units) 2U
Rack Size 19"
Expansion / Connectivity

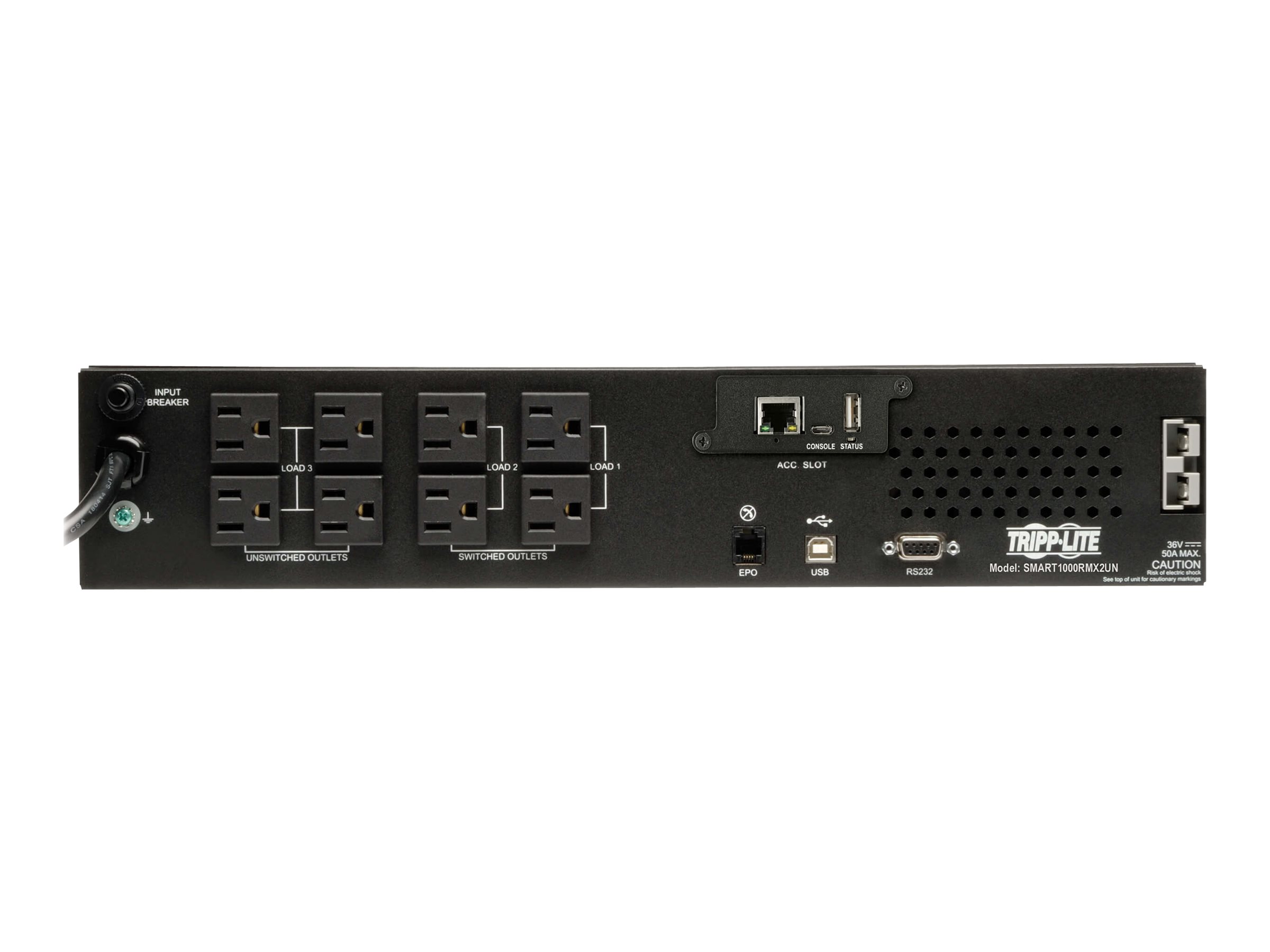

Interfaces 1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x EPO (emergency power off)
Manufacturer Warranty
Service & Support Limited warranty - 2 years
Miscellaneous
Included Accessories Network interface card (WEBCARDLXE)

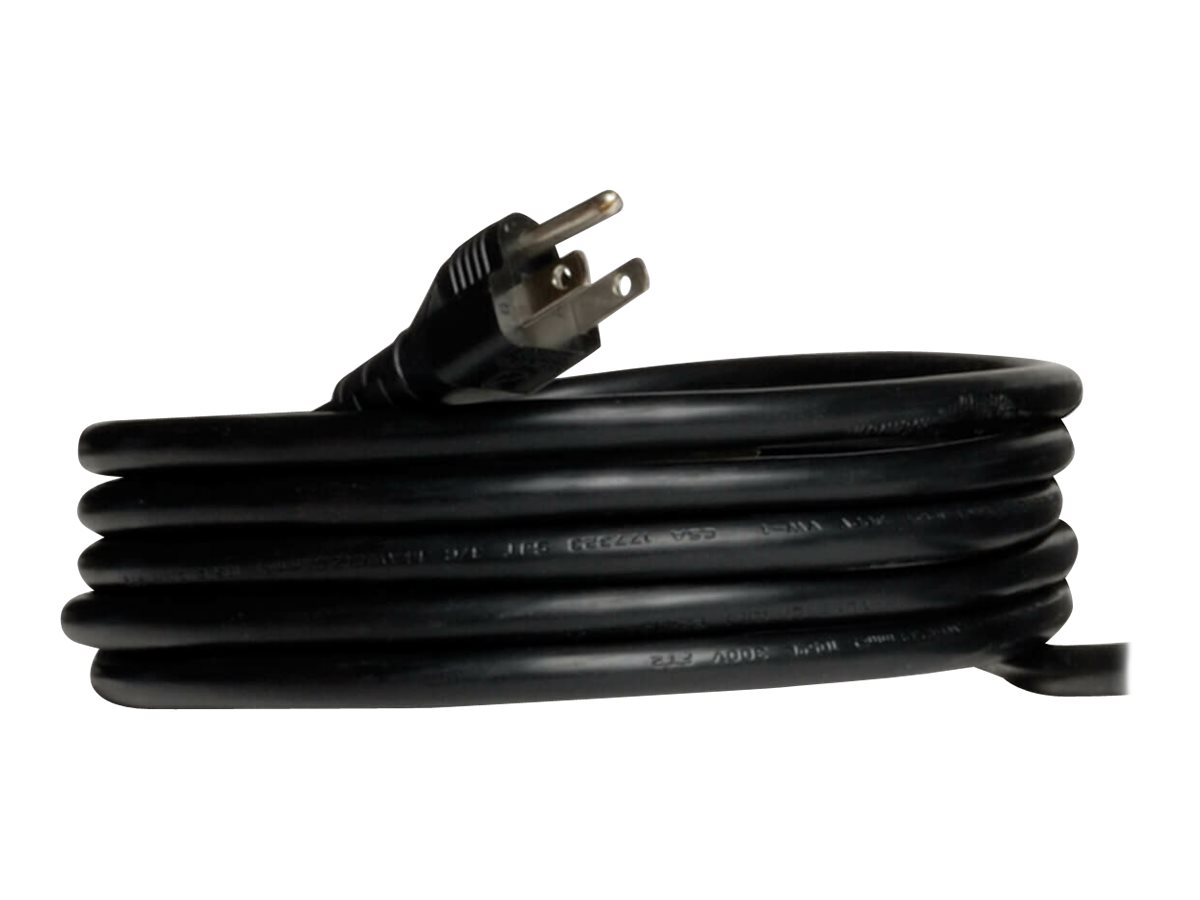

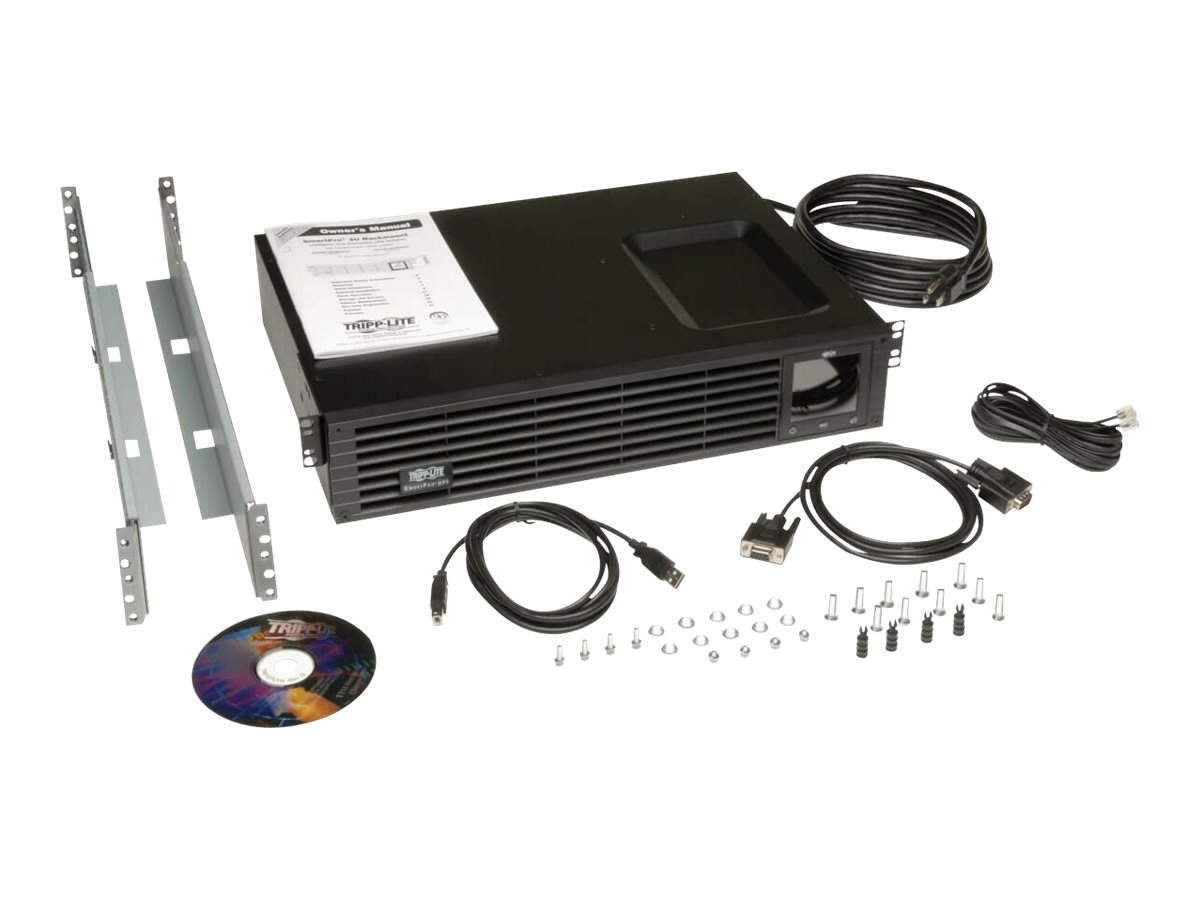

Cables Included USB cable - external ¦ Serial cable - external ¦ EPO cable - external ¦ Power cable 10 ft
Rack Mounting Kit Included
Equipment Protection Value 250000 US Dollars
Features 4 post rack mountable, audible alarm, LCD display, Automatic Voltage Regulation (AVR), overload protection, cold-start function, cooling fan, overvoltage correction, undervoltage correction, noise suppression, Human Interface Device (HID) support, 2 switchable sockets, controllable load banks, load management receptacles
Compliant Standards CSA, NOM, UL 1778, RoHS, FCC Part 15 A, CAN/CSA C22.2 No. 107.3-14
Networking
Remote Management Interface RS-232, USB
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 0 - 95% (non-condensing)
Sound Emission 45 dBA
Battery
Type Expandable
Voltage Provided 36 V
Run Time (Up To) 6 min at full load ¦ 18 min at half load
Recharge Time 4.5 hours
Transfer Time 4 ms
Power Device
UPS Technology Line interactive
Input Voltage AC 120 V
Frequency Provided 50/60 Hz
Input Wiring 1-phase
Input Connectors 1 x power NEMA 5-15P
Power Output Connectors Details 8 x power NEMA 5-15R
Output Voltage AC 110/115/120 V ± 0.5% - 50/60 Hz
Max Electric Current 9.2 A
Power Capacity 1000 Watt / 1000 VA
Output Waveform Sinewave
Surge Suppression Yes
Surge Energy Rating 570 Joules
Circuit Protection Circuit breaker
Efficiency 95% at 100% AC mode
Power Factor (PF) 0.9
Dimensions & Weight
Width 17.3 in
Depth 17.6 in
Height 3.4 in
Weight 44.53 lbs
Dimensions & Weight (Shipping)
Shipping Width 19.6 in
Shipping Depth 23 in
Shipping Height 9.4 in
Shipping Weight 55.6 lbs
