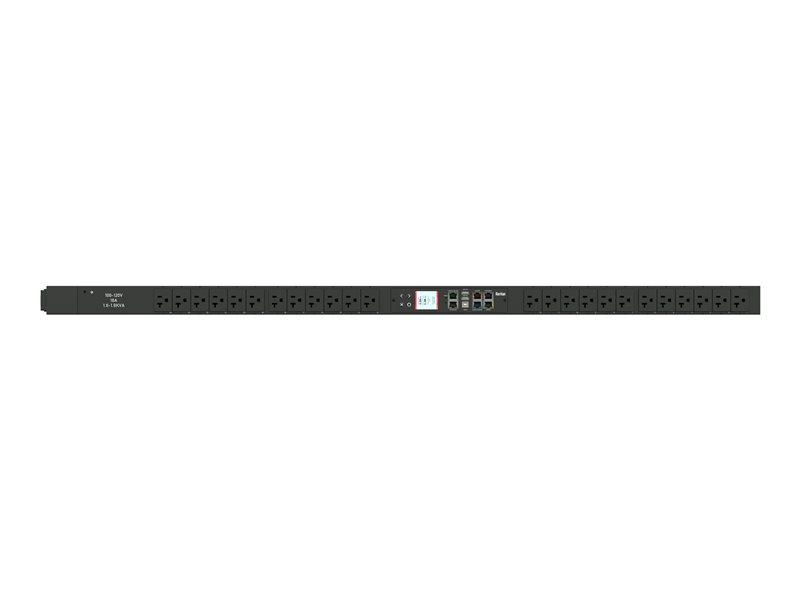

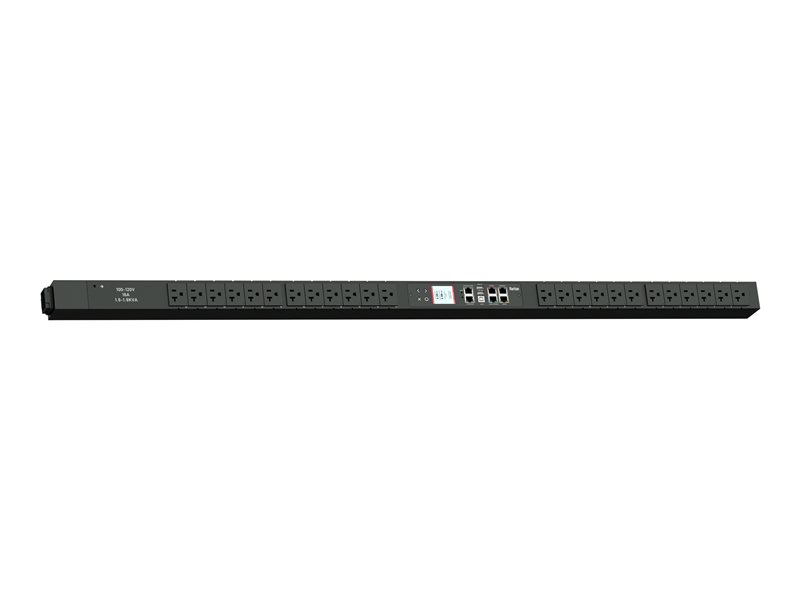

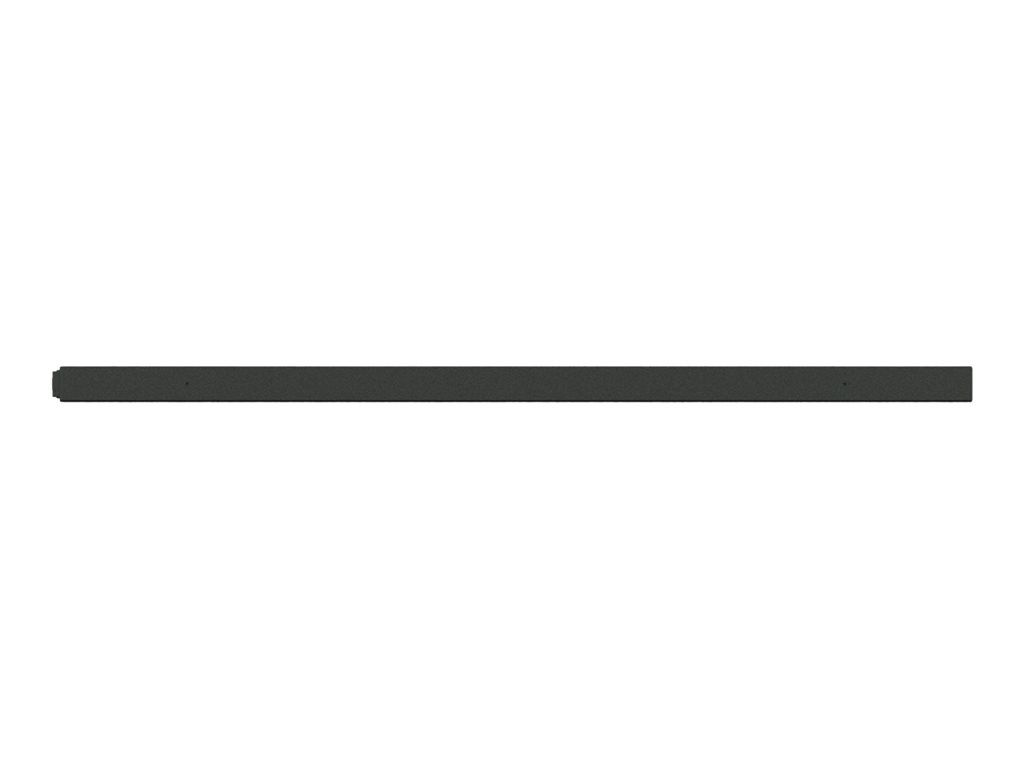

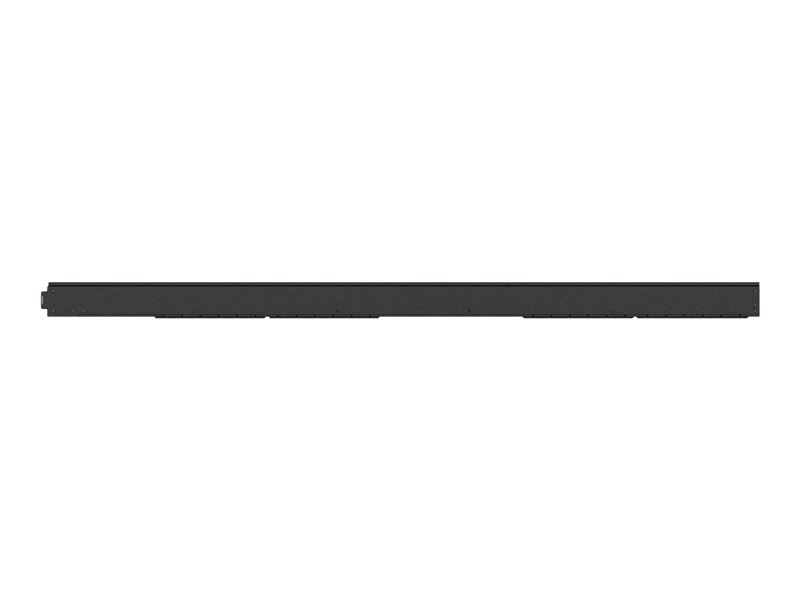

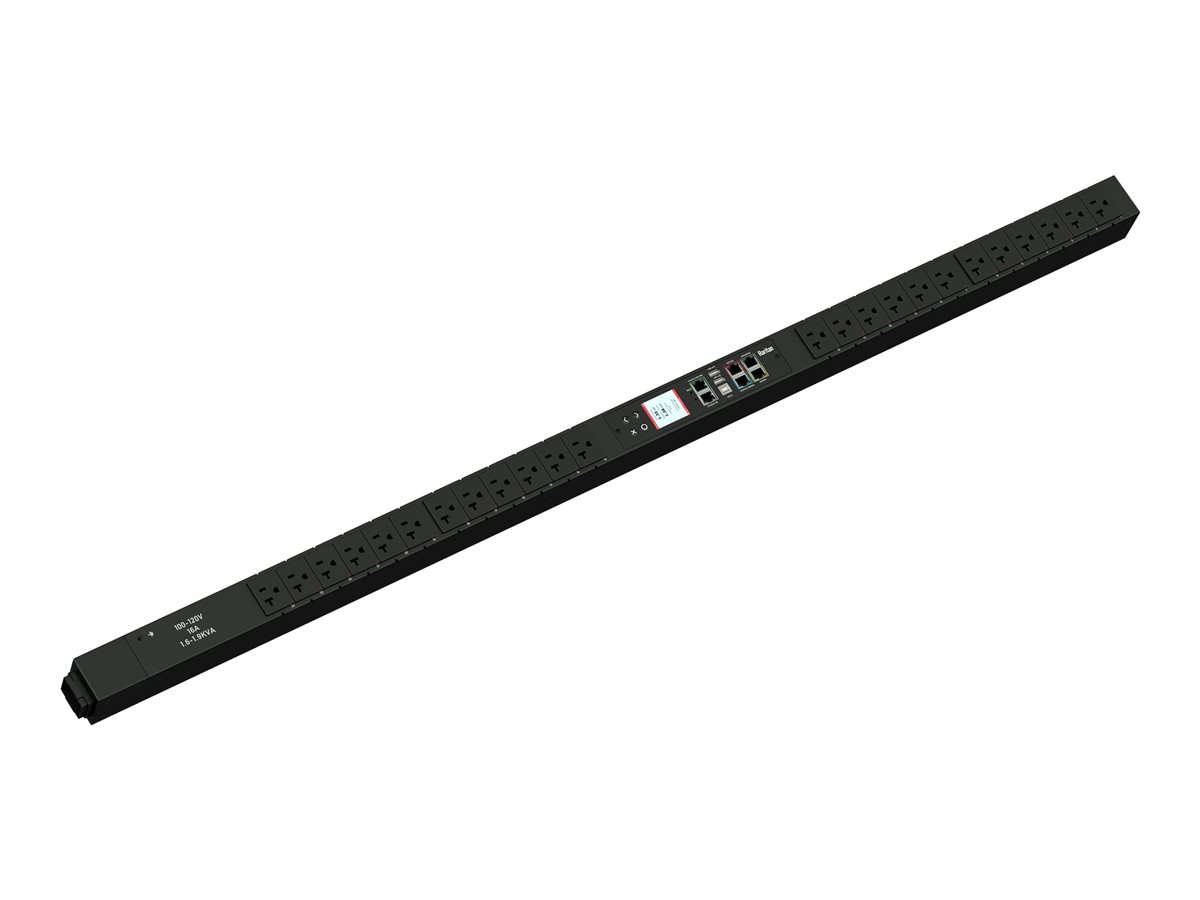

Raritan - Raritan PX3-5475U
Power distribution unit (rack-mountable) - AC 120 V - 1900 VA - 1-phase - Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 - input: NEMA L5-20P - output connectors: 24 (24 x NEMA 5-20R) - 0U - 10 ft cord - black powder coat
Raritan
PX3-5475U
N/A
N/A
N/A
New
Product Description
Additional Details
What's Included
Main Specifications | |
---|---|
Product Description | Raritan PX3-5475U - power distribution unit - 1900 VA |
Device Type | Power distribution unit - rack-mountable |
Cord Length | 10 ft |
Rack Size | 0U |
Weight | 10.14 lbs |
Input Wiring | 1-phase |
Input Voltage | AC 120 V |
Output Voltage | AC 120 V |
Power Capacity | 1900 VA |
Power Capacity Details | 1.6 kVA at 100 V, 1.9 kVA at 120 V |
Input Connectors | 1 x power NEMA L5-20P |
Output connectors | 24 x power NEMA 5-20R - 120 V 16 A |
Networking | Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 |
Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus |
Color | Black powder coat |
Dimensions (WxDxH) | 2 in x 2.6 in x 51.1 in |
Manufacturer Warranty | 2-year warranty |
General | |
Device Type | Power distribution unit - rack-mountable |
Height (Rack Units) | 0U |
Cord Length | 10 ft |
Color | Black powder coat |
Expansion / Connectivity | |
Interfaces | 1 x management (Gigabit Ethernet) - RJ-45 ¦ 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ 2 x USB - 4 pin USB Type A ¦ 1 x cascading - RJ-45 ¦ 1 x management (RS-232) - RJ-45 ¦ 1 x sensor - RJ-45 |
Manufacturer Warranty | |
Service & Support | Limited warranty - 2 years |
Miscellaneous | |
Cables Included | Power cable 10 ft |
Features | Vertical orientation, LCD display, current meter, LED indicators, vertical orientation, cascadable, active power meter, real power meter, energy meter, power factor meter, remote outlet switching, metering per input line, metering per output receptacle, replaceable controller, monitored per outlet, switched, power cable IP44 compliant, cord retention, Auto-Flip Current Display, voltage meter, environmental sensor ready |
Compliant Standards | UL, ICES-003, RoHS, FCC Part 15 A, cULus, IEC 62053-21, ISO 62053-21 |
Networking | |
Remote Management Interface | Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 |
Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus |
Environmental Parameters | |
Max Operating Temperature | 140 °F |
Humidity Range Operating | 85% |
Power Device | |
Input Voltage | AC 120 V |
Input Voltage Range | AC 100 - 120 V |
Input Wiring | 1-phase |
Frequency Required | 50/60 Hz |
Input Connectors | 1 x power NEMA L5-20P |
Power Output Connectors Details | 24 x power NEMA 5-20R - 120 V 16 A |
Output Voltage | AC 120 V |
Max Electric Current | 20 A |
Power Capacity | 1900 VA |
Power Capacity Details | 1.6 kVA at 100 V, 1.9 kVA at 120 V |
Dimensions & Weight | |
Width | 2 in |
Depth | 2.6 in |
Height | 51.1 in |
Weight | 10.14 lbs |
Dimensions & Weight (Shipping) | |
Shipping Width | 7.3 in |
Shipping Depth | 7.3 in |
Shipping Height | 55.4 in |
Shipping Weight | 14.55 lbs |
