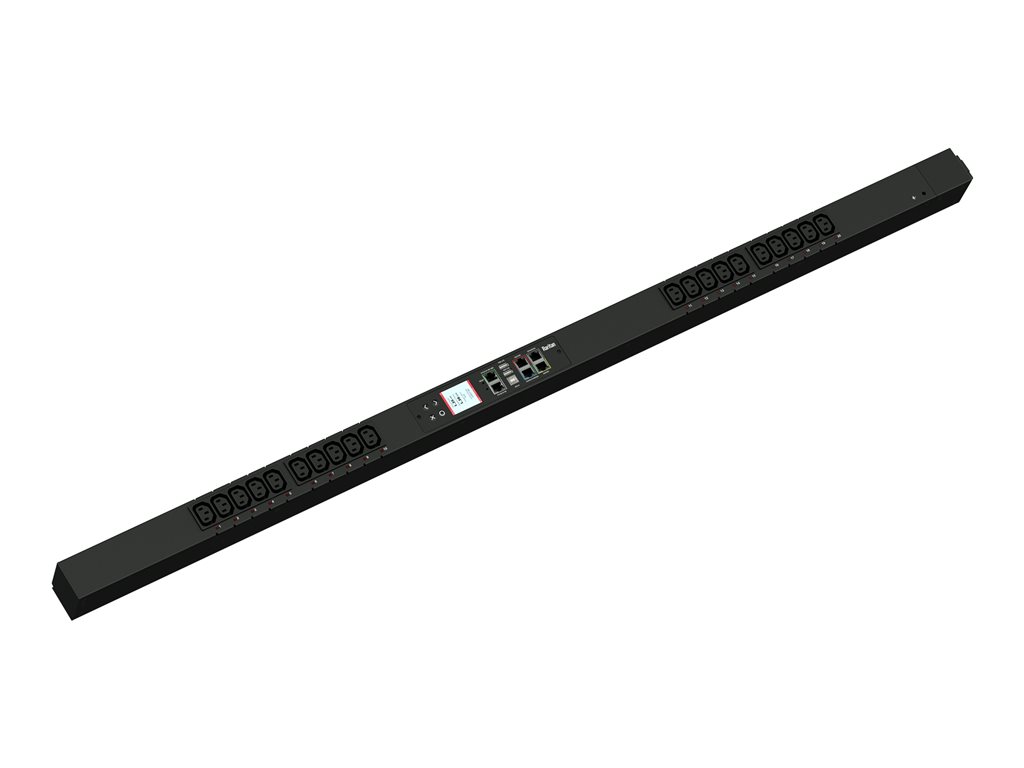

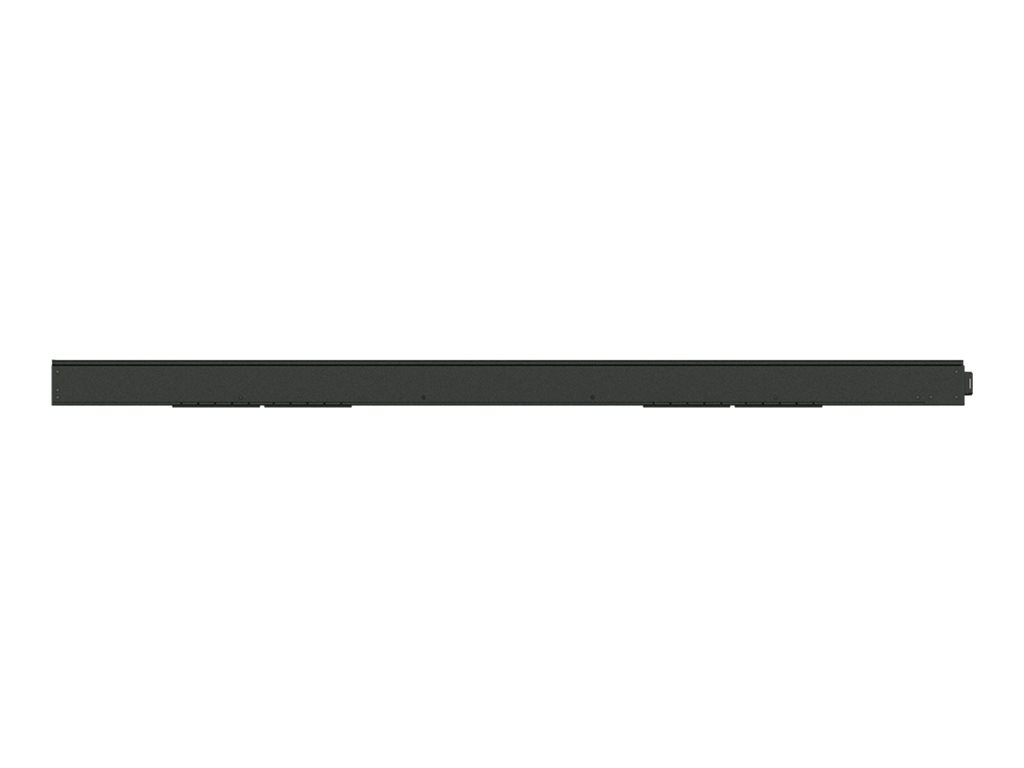

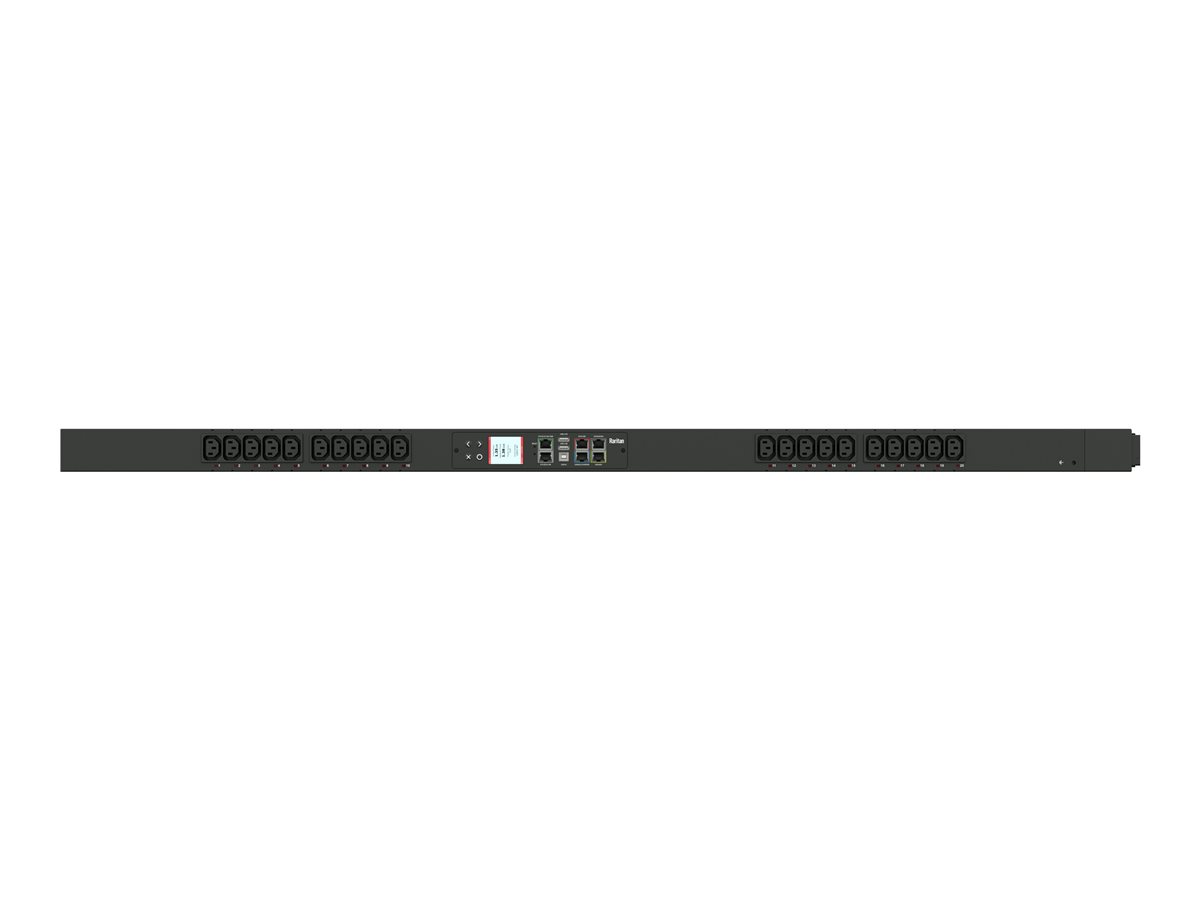

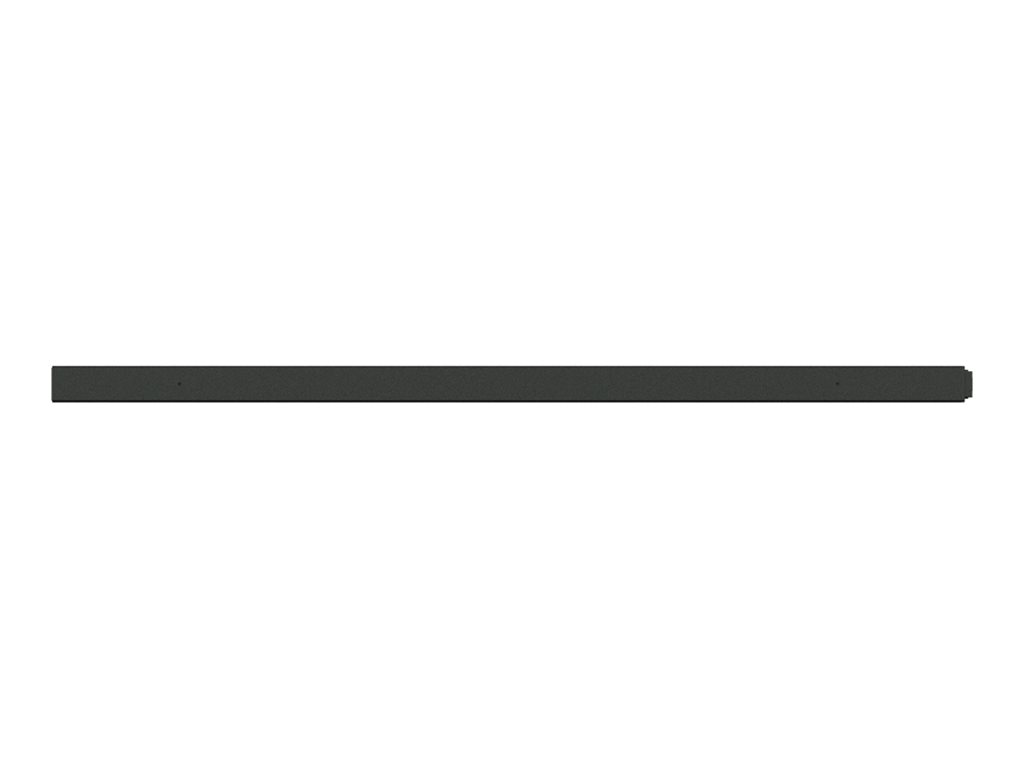

Raritan - Raritan PX3-5434V
Power distribution unit (rack-mountable) - AC 208 V - 3300 VA - 1-phase - RS-232, USB, Ethernet 10/100/1000 - input: NEMA L6-20P - output connectors: 20 (20 x IEC 60320 C13) - 0U - 10 ft cord - red
Raritan
PX3-5434V-K1
N/A
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Raritan PX3-5434V - power distribution unit - 3300 VA |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 10 ft |
| Rack Size | 0U |
| Weight | 7.05 lbs |
| Input Wiring | 1-phase |
| Input Voltage | AC 208 V |
| Output Voltage | AC 208 V |
| Power Capacity | 3300 VA |
| Power Capacity Details | 3.2 kVA at 200 V, 3.8 kVA at 240 V |
| Input Connectors | 1 x power NEMA L6-20P |
| Output connectors | 20 x power IEC 60320 C13 12 A |
| Networking | RS-232, USB, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, CLI, JSON-RPC, SMTP, Modbus, DHCP |
| Color | Red |
| Image Color Disclaimer | The displayed product image may be a different color |
| Dimensions (WxDxH) | 2 in x 2.6 in x 51.1 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Cord Length | 10 ft |
| Color | Red |
| Image Color Disclaimer | The displayed product image may be a different color |
| Expansion / Connectivity | |
| Interfaces | 2 x management (Gigabit Ethernet) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ 2 x USB - 4 pin USB Type A ¦ 1 x cascading - RJ-45 ¦ 1 x console/modem - RJ-45 ¦ 1 x sensor - RJ-45 ¦ 1 x expansion - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 10 ft |
| Features | Vertical orientation, 16 Mb flash, LCD display, current meter, LED indicators, vertical orientation, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, remote outlet switching, metering per input line, metering per output receptacle, replaceable controller, power cable IP44 compliant, cord retention, removable controller, Auto-Flip Current Display, voltage meter, environmental sensor ready |
| Compliant Standards | UL, ICES-003, RoHS, FCC Part 15 A, cULus, IEC 62053-21, ISO 62053-21 |
| Networking | |
| Remote Management Interface | RS-232, USB, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, CLI, JSON-RPC, SMTP, Modbus, DHCP |
| Environmental Parameters | |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 85% |
| Power Device | |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 200 - 240 V |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L6-20P |
| Power Output Connectors Details | 20 x power IEC 60320 C13 12 A |
| Output Voltage | AC 208 V |
| Max Electric Current | 20 A |
| Power Capacity | 3300 VA |
| Power Capacity Details | 3.2 kVA at 200 V, 3.8 kVA at 240 V |
| Dimensions & Weight | |
| Width | 2 in |
| Depth | 2.6 in |
| Height | 51.1 in |
| Weight | 7.05 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 7.3 in |
| Shipping Depth | 4.7 in |
| Shipping Height | 55.4 in |
| Shipping Weight | 13.45 lbs |
