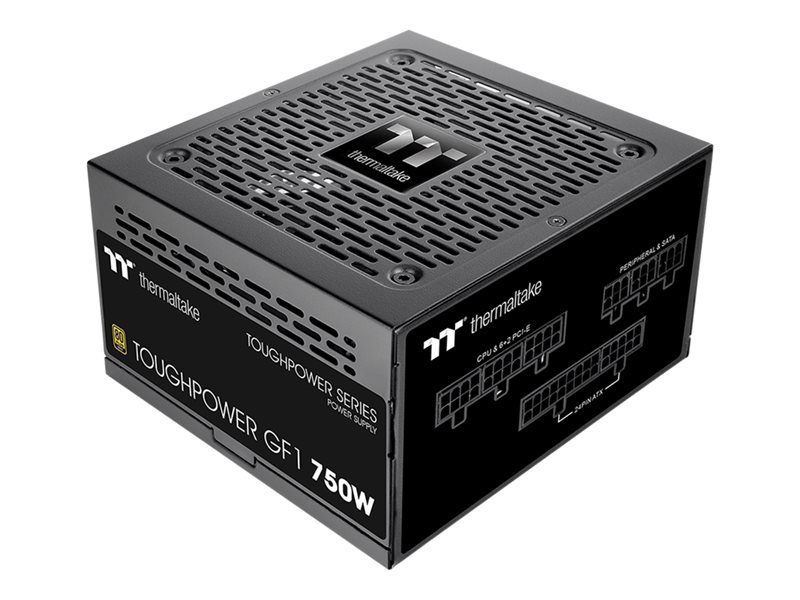

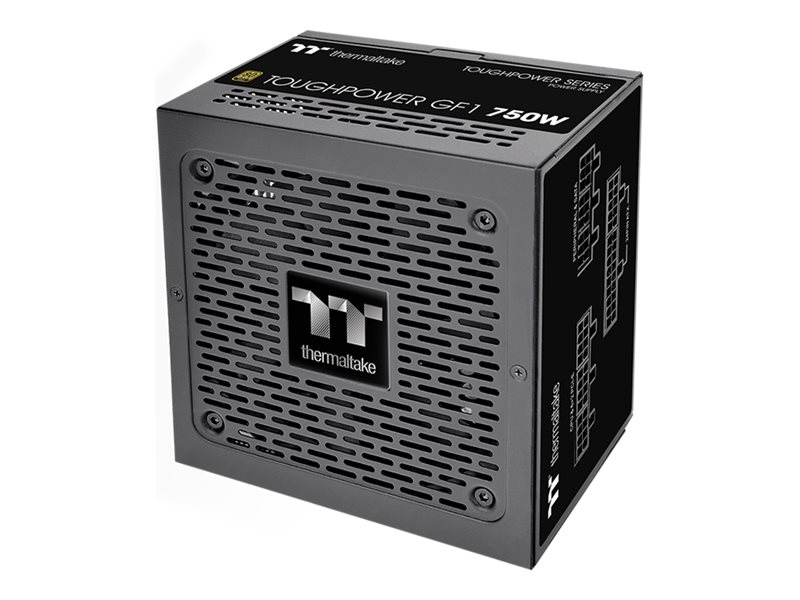

Thermaltake - Thermaltake ToughPower GF1 750W
TT Premium Edition - power supply (internal) - ATX12V - 80 PLUS Gold - AC 100-240 V - 750 Watt - active PFC
Thermaltake
PS-TPD-0750FNFAGU-P
N/A
0841163090831
N/A
New
Promotional Price
$4.00
02/27/2026
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Thermaltake ToughPower GF1 750W - TT Premium Edition - power supply - 750 Watt |
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V |
| 80 PLUS Certification | 80 PLUS Gold |
| Input Voltage | AC 100-240 V |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 750 Watt |
| Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 62.5 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Output connectors | 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 4 x 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 8 x 15 pin Serial ATA power ¦ 4 x 4 pin internal power |
| Modular Cable Management | Yes |
| Cooling System | 120 mm fan |
| Included Accessories | Screws, cable straps |
| Dimensions (WxDxH) | 5.9 in x 5.5 in x 3.4 in |
| Manufacturer Warranty | 10-year warranty |
| General | |
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V |
| PSU Form Factor | ATX |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 10 years |
| Miscellaneous | |
| Included Accessories | Screws, cable straps |
| Cables Included | AC power cable ¦ Power 24 pin ATX modular cable 2 ft ¦ Power 8 pin +12V with detachable 4 pin section modular cable 2.6 ft ¦ 2 x 2x 8 pin PCI Express power with detachable 2 pin section modular cable 2 ft ¦ 2 x 15 pin Serial ATA power modular cable 3 ft ¦ 4 pin power modular cable 3 ft |
| MTBF | 100,000 hours |
| Cooling System | 120 mm fan |
| Features | Overheat protection, overcurrent protection, overvoltage protection, overpower protection, short-circuit protection, DC-DC technology, Zero RPM fan mode, fluid dynamic bearing cooling fan, fully modular, undervoltage correction, LLC resonant converter technology, Intel C6/C7 Sleep State compatible |
| Compliant Standards | FCC, cTUVus |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 4 x 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 8 x 15 pin Serial ATA power ¦ 4 x 4 pin internal power |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 750 Watt |
| Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 62.5 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Efficiency | 90% |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Dimensions & Weight | |
| Width | 5.9 in |
| Depth | 5.5 in |
| Height | 3.4 in |
