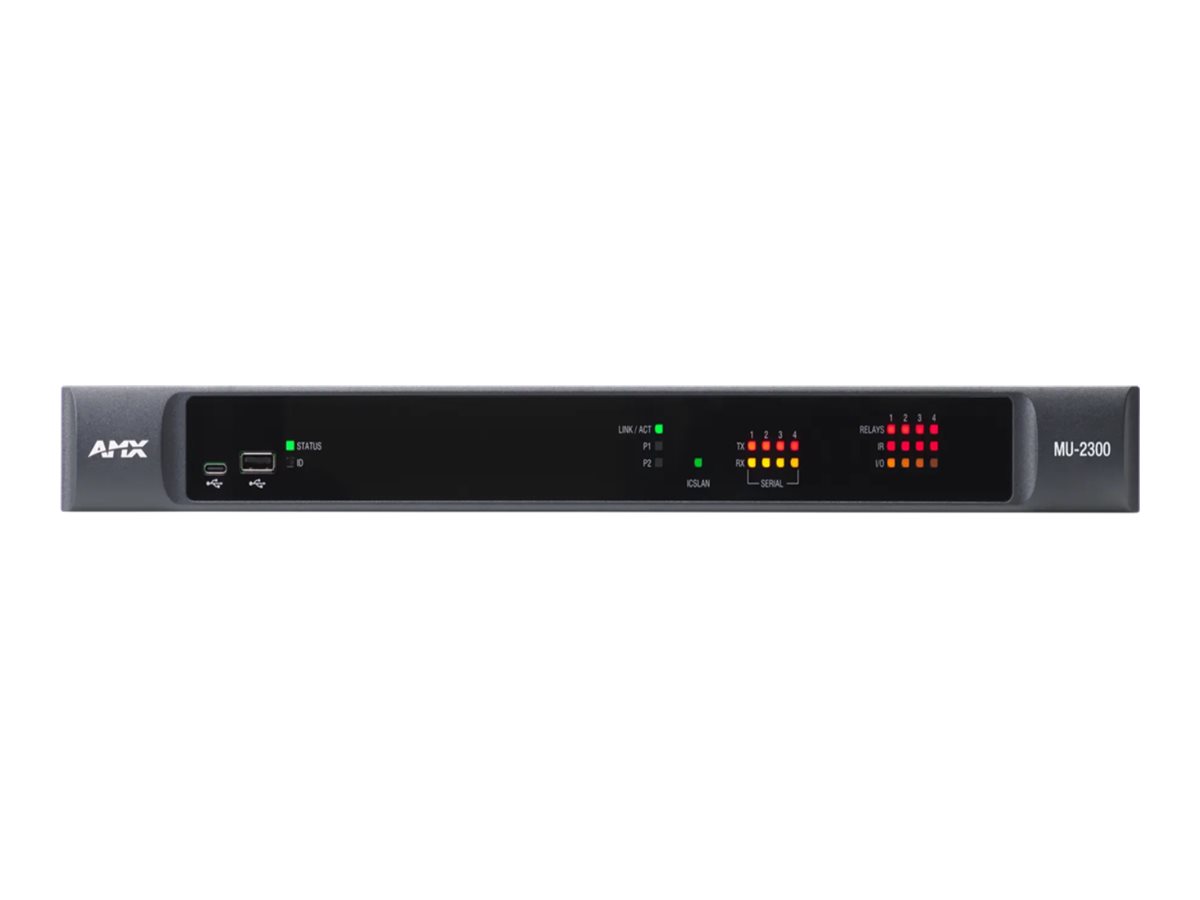

Harman - AMX MUSE MU-2300
Controller - wired
Harman
AMX-CCC023
N/A
0718878034880
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | AMX MUSE MU-2300 - controller |
| Product Type | Controller |
| Power Source | Power adapter |
| Connectivity | Wired |
| Dimensions (WxDxH) | 1.7 in x 9.1 in x 1.8 in |
| General | |
| Product Type | Controller |
| Power Source | Power adapter |
| Connectivity Technology | Wired |
| Interfaces Details | LAN ¦ Serial (RS-232/RS-422/RS-485) ¦ 3 x serial (RS-232) ¦ 4 x infrared ¦ 4 x relay ¦ USB-C ¦ 3 x USB-A ¦ ICSNet |
| Features | Rack mountable (1U) LED status indicators, auto-uplink (auto MDI/MDI-X), DHCP client |
| Miscellaneous | |
| Voltage Required | DC 12 V |
| Compliant Standards | ICES 003, EN 55032, AS/NZS CISPR 32, EN 55035, EN 62368-1, IEC 62368-1, UL 62368-1, VCCI-CISPR 32, RoHS, WEEE |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 85% RH |
| Dimensions & Weight | |
| Width | 1.7 in |
| Depth | 9.1 in |
| Height | 1.8 in |
| Weight | 5.95 lbs |
