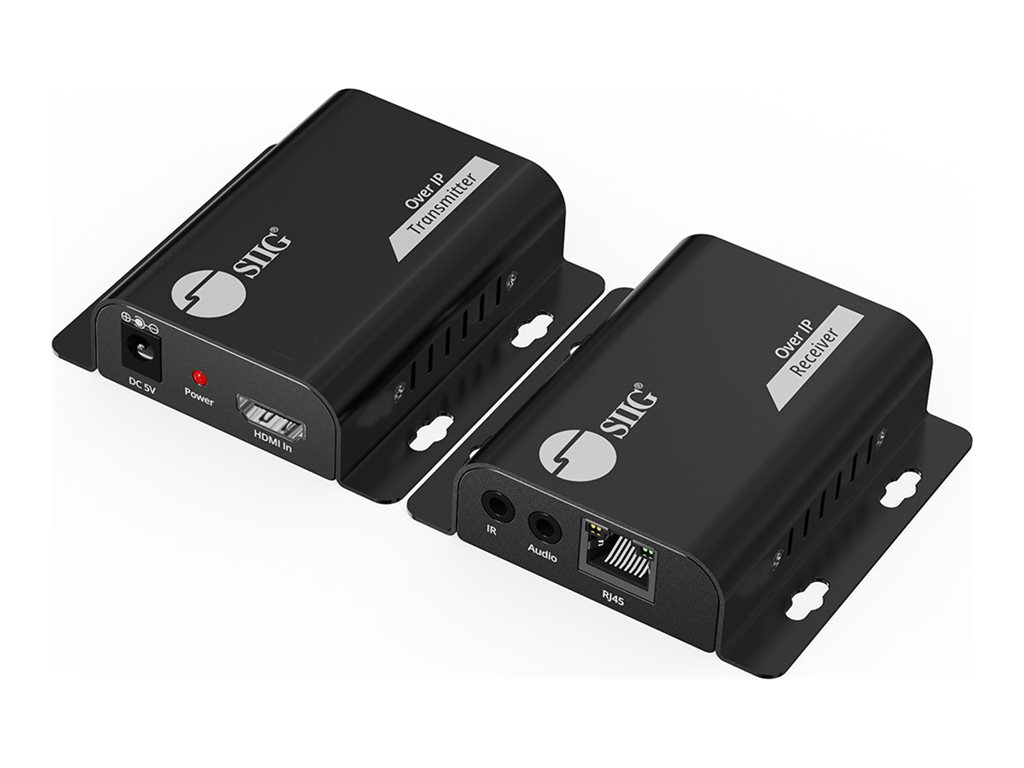

Video/audio/infrared extender - HDMI - up to 492 ft
Product Description

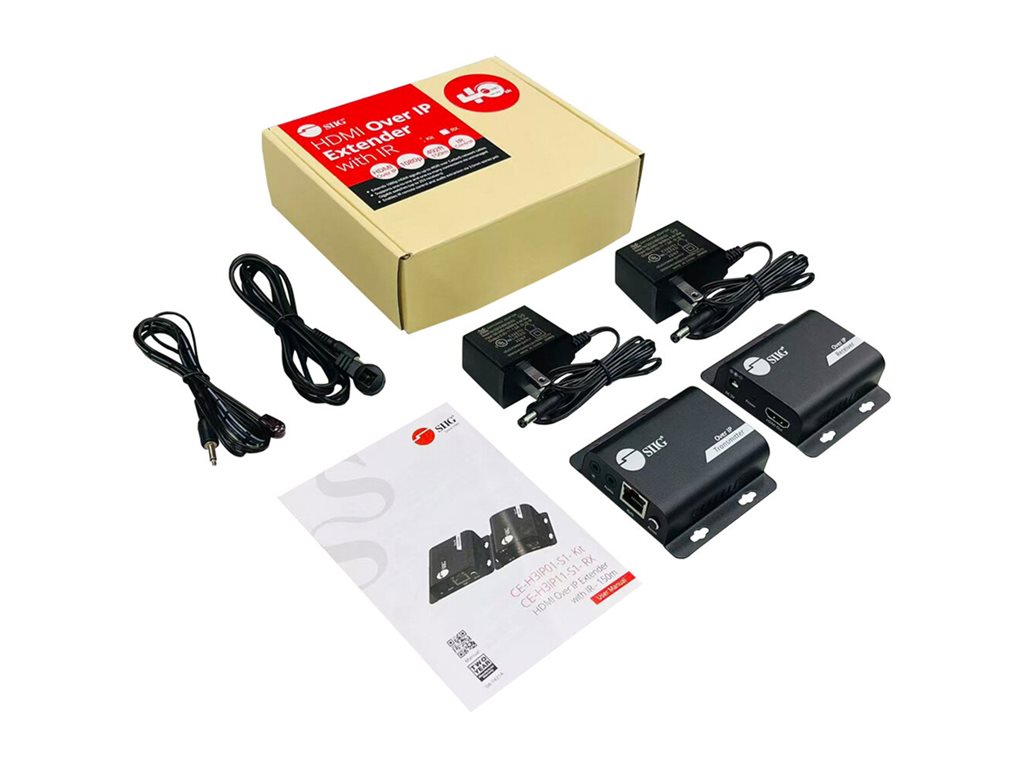

What's Included
| Main Specifications | |
|---|---|
| Product Description | SIIG - video/audio/infrared extender - HDMI |
| Device Type | Video/audio/infrared extender |
| Form Factor | External |
| Data Transfer Rate | 4.95 Gbps |
| Data Link Protocol | HDMI |
| Remote Management Protocol | TCP/IP |
| Max Transfer Distance | 492 ft |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 3 in x 3 in x 0.9 in |
| Weight | 4.16 oz |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Video/audio/infrared extender |
| Form Factor | External |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI output (transmitter) - 19 pin HDMI Type A ¦ 1 x network (transmitter) - RJ-45 ¦ 1 x audio line-out (transmitter) - mini jack ¦ 1 x HDMI output (receiver) - 19 pin HDMI Type A ¦ 1 x network (receiver) - RJ-45 ¦ 1 x audio line-out (receiver) - mini jack ¦ 1 x IR input (receiver) - mini jack |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | 2 power adapters |
| Cables Included | 1 x IR emitter cable ¦ 1 x IR receiver cable |
| Compliant Standards | Plug and Play, UL, FCC, RoHS |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI |
| Data Transfer Rate | 4.95 Gbps |
| Remote Management Protocol | TCP/IP |
| Max Resolution | 1080p @ 60 Hz |
| Max Transfer Distance | 492 ft |
| Features | One-to-Many, audio extraction support, metal housing, reset button, LPCM 2.0 support |
| Compliant Standards | HDCP 1.2 |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 80% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 3 in |
| Depth | 3 in |
| Height | 0.9 in |
| Weight | 4.16 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 7.1 in |
| Shipping Depth | 5.8 in |
| Shipping Height | 2.2 in |
| Shipping Weight | 17.92 oz |
