SIIG - SIIG
Extender Kit - video/audio/infrared extender - HDMI, 802.11b/g/n, Wi-Fi 5 - up to 492 ft
Product Description
What's Included
| Main Specifications | |
|---|---|
| Product Description | SIIG - Extender Kit - video/audio/infrared extender - HDMI, 802.11b/g/n, Wi-Fi 5 |
| Device Type | Video/audio/infrared extender |
| Form Factor | External |
| Data Transfer Rate | 10.2 Gbps |
| Frequency Band | 5 GHz |
| Data Link Protocol | HDMI, 802.11b/g/n, Wi-Fi 5 |
| Max Transfer Distance | 492 ft |
| Power | AC 100-240 V |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Video/audio/infrared extender |
| Form Factor | External |
| Built-in Devices | Dual external antennas |
| Color | Black |
| Expansion / Connectivity | |

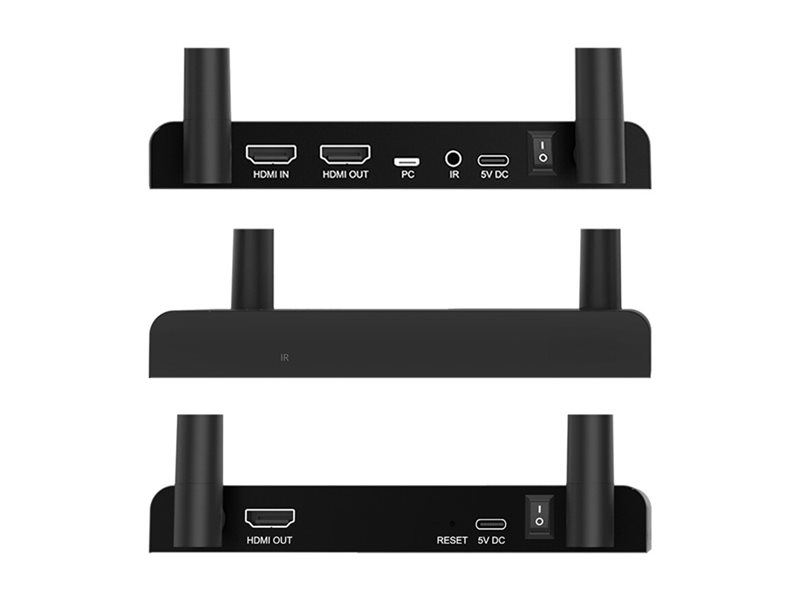

| Interfaces | 1 x HDMI input (transmitter) - 19 pin HDMI Type A ¦ 1 x HDMI output (transmitter) - 19 pin HDMI Type A ¦ 1 x micro-USB (transmitter) ¦ 1 x IR output (transmitter) - mini jack ¦ 1 x USB (power only) (transmitter) - USB type C ¦ 1 x HDMI output (receiver) - 19 pin HDMI Type A ¦ 1 x USB (power only) (receiver) - USB type C |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | 2 power adapters |
| Cables Included | IR cable ¦ 2 x HDMI cable ¦ 2 x USB-A to USB-C cable |
| Compliant Standards | Plug and Play, FCC, RoHS, FCC ID, UL |
| Networking | |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | HDMI, 802.11b/g/n, Wi-Fi 5 |
| Data Transfer Rate | 10.2 Gbps |
| Frequency Band | 5 GHz |
| Max Resolution | 1080p @ 60 Hz |
| Max Video Bandwidth | 80 MHz |
| Max Transfer Distance | 492 ft |
| Features | HDMI loop out, 2x2 MIMO 5GHz, infrared remote control support, reset button, metal housing, LPCM 2.0 support |
| Compliant Standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 90% RH (non-condensing) |
| Dimensions & Weight | |
| Dimensions (WxDxH) / Weight Details | Transmitter: 6.1 in x 3 in x 0.8 in / 11.6 oz ¦ Receiver: 6.1 in x 3 in x 0.8 in / 11.6 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 9.8 in |
| Shipping Depth | 9.2 in |
| Shipping Height | 2.2 in |
| Shipping Weight | 2.65 lbs |
